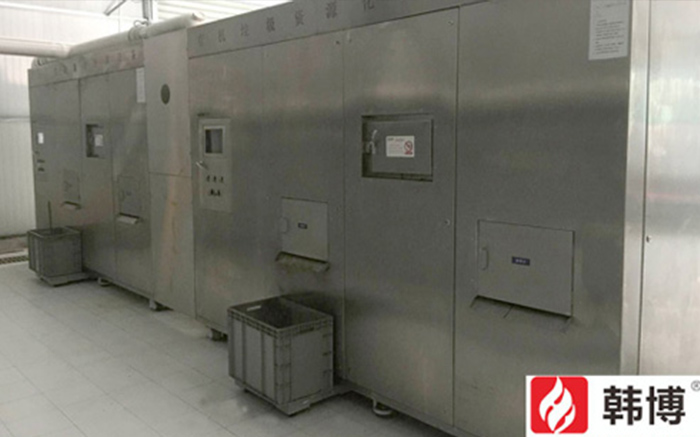

20000kg organic waste treatment equipment

The 20000kg organic waste treatment equipment has a daily treatment capacity of 20000kg, including manual sorting, crushing, biochemical treatment and gas purification. The 20000kg organic waste treatment equipment is composed of inlet and outlet, reactor, mixer, heater, ventilation and waste gas treatment device, and has the functions of thermal insulation, automatic operation and operation status display. The design service life of 20000kg organic waste treatment equipment shall be ≥ 10 years. The treatment equipment shall be sealed without leakage, and the ventilation capacity can be adjusted. It shall be discharged up to the standard after being treated by the waste gas treatment device.

Online consultation

PHONE：
18913525319

Parameters of 20000kg waste treatment equipment


Product name Local organic waste treatment system Treatment method Biochemical degradation treatment
Product model CFCZ-YJ2000 Date of manufacture 2017Year
Basic technical parameters of products Rated voltage 380V/ 50HZ Basic technical parameters of products Overall size
10T biochemical machine 6456x 4518x 2480
conveying system
7000X 1500X 2300
Gas purification
1000X 650X 1080
Daily processing capacity 2000kg Packing method Wooden case transportation
Total power of crushing motor 12KW Total power of mixing motor
132KW
Total power of winch motor 11KW House size 26m x15m X5m
Hoist power  2.2KW Conveyor power 0.4KW
Total heating power 264KW Power unit motor 1.1KW
Fan power 350W Nameplate Han Bo
Treatment method
Biochemical degradation reduction and volume reduction
 Exhaust mode Circulating exhaust
Operating noise ≤65dB Exhaust emission No waste discharge
Processing cycle 2H Control mode PLC automatic control + loop button control
Body material All stainless steel body Crushing mode Tear and crush
　　
1) Garbage sorting:
Preliminary sorting (picking table) and detailed sorting (conveyor belt) of garbage.
2) Waste crushing and squeezing:
The treatment capacity is 20 tons / day, and the garbage shall be crushed and squeezed dry to reduce the dehydration of garbage.
3) Biochemical treatment of waste:
The treatment capacity of each biochemical processor is 20000kg / day, which has the functions of waste reduction, biochemical degradation and waste gas purification.
Functions of 20000kg waste treatment equipment
1. 20000k waste treatment equipment shall have the functions of sorting, crushing, extrusion, biochemical treatment, gas purification, etc.
2. The design service life of 20000 kg waste treatment equipment shall be ≥ 10 years, the treatment equipment shall be sealed, there shall be no leakage, and the ventilation volume can be adjusted.
3. The 20000kg waste treatment equipment is equipped with PLC control, and the equipment operates automatically without manual intervention. The PLC display screen can display the working temperature, mixer, fan and other information. It is equipped with LCD touch screen, and the system data can be displayed completely.
4. Biochemical processor shall have the following functions:
(1) Degradation function: the treatment function can degrade organic waste components: after meal waste, waste, farmers' market waste, agricultural waste (such as towel gourd vine, potato vine, etc.), greening waste (leaves, rotten grass, etc.).
(2) Automatic feeding function: the processor product has an automatic feeding turnover device, one key operation, labor-saving and convenient.
(3) Function: the processor is equipped with device, spray, carbon purification, ultraviolet sterilization, filter and other functions. The odor concentration fully meets the indexes specified in gb14554.
(4) Automatic weighing function: the processor has automatic weighing function and is recorded in the system.
(5) Remote monitoring system: the processor uploads information (machine operation, amount of garbage handled, amount of fertilizer produced, etc.) to the information platform through the Internet.
(6) Automatic discharge function: the processor has automatic discharge function. Click the discharge button to discharge automatically.
5. The temperature range of the bin heating system can be adjusted and set through the PLC panel as required, and has overheating protection device;
6. The stop time of the mixing system in the machine bin can be adjusted and set through the PLC panel as required. The main mixing motor shall be equipped with overload protection device and manual control device
7. The decomposition rate of 20000 kg waste treatment equipment is more than 95%
8. The noise, waste gas and waste water discharge of organic waste microbial processor shall comply with relevant national environmental protection standards.
9. Quality of organic fertilizer: the quality fraction of organic matter, total nutrient, water, pH, total mercury, total lead, total chromium and total cadmium of the organic fertilizer obtained after biochemical treatment meet the requirements specified in ny525-2012 standard
